Home /Products/Soil Investigation Drilling Rig/200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation

200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation

1 Set
MOQ
200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation
Features Gallery Product Description Request A Quote
Features
Specifications
Model NO: XY-200Type
Condition: New
Motor: Diesel Engine
Drill Hole Diameter: 46-110mm
Drill Hole Depth: 200m
Usage: Geotechnical, Soil Test, Water Well
After-Sales Service Provided: Video Technical Support
Highlight:

Building Hydraulic Core Drilling Rig

,

Investigation Hydraulic Core Drilling Rig

,

Building Foundation Hydraulic Drilling Rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: XY-200 type
Payment & Shipping Terms
Packaging Details: in New Strong Plywood Case
Supply Ability: 50 Sets/Month
Product Description

200 Type Hydraulic Core Drilling Rig, For Building Foundation Investigation,

1. Applications of XY-200 hydraulic core drilling rig

Geological survey, geophysical exploration, road and high-rise building foundation exploration, wells, blasting holes and other drilling projects.

2. Parameters of XY-200 hydraulic core drilling rig

Model XY-200
Maximum opening diameter 400mm
Maximum borehole depth 200m
Diameter of the end hole 75mm
Borehole dip angle 90-75°
Machine overall size 2.75*0.95*1.60m
Drill pipe diameter 50mm
Weight of drill rig diameter of drill pipe (without power) 760kg
Spindle
Shaft rotation speed 71/142/310/20r/min
Vertical axis stroke 450mm
Windlass
Maximum lifting weight of single rope 2008kb
Drum lifting speed 17/35/75/160 rm/s
Wire rope diameter: 13mm
Wire rope capacity 35mm
Width of sluice 70mm
Mud pump
Type: horizontal single cylinder double action flow:180L/min
Maximum pressure 1.5mpa
Working pressure 0.7mpa
Inlet size 50mm
Outlet pipe diameter 45mm
Power
Diesel oil 22hp
Rated speed 2200r/min
Electric machinery 15kw
Rated speed 1460r/min

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

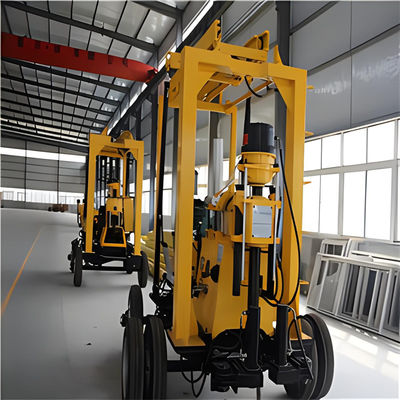

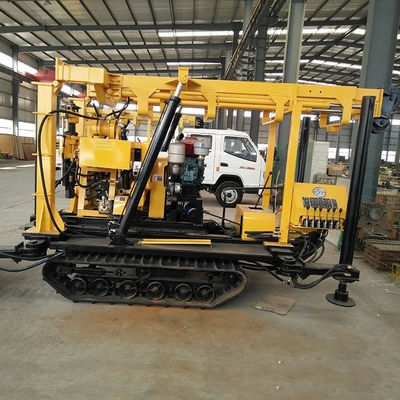

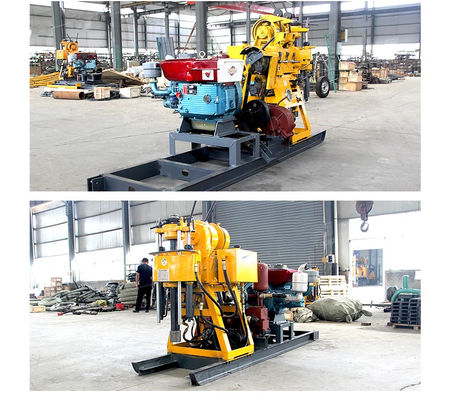

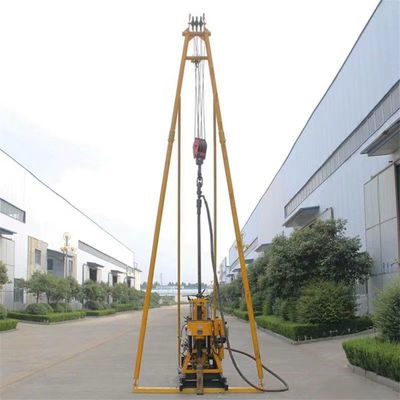

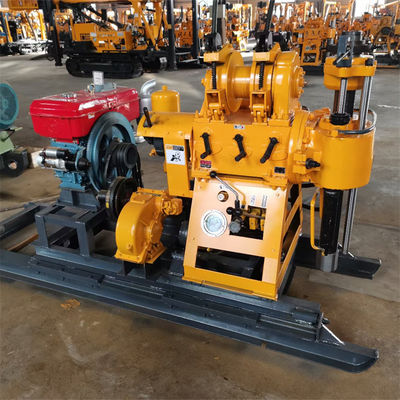

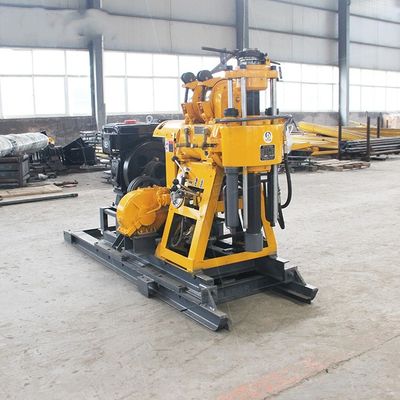

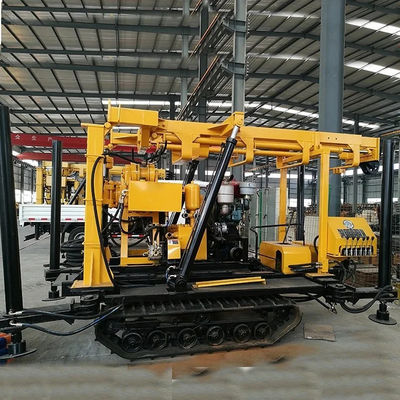

200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 0200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 1200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 2200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 3200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 4200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 5200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 6200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 7200 Type Hydraulic Core Drilling Rig For Building Foundation Investigation 8

Tag:

Core Drilling Machine

Rig Drilling Machine

Core Drilling Rig
