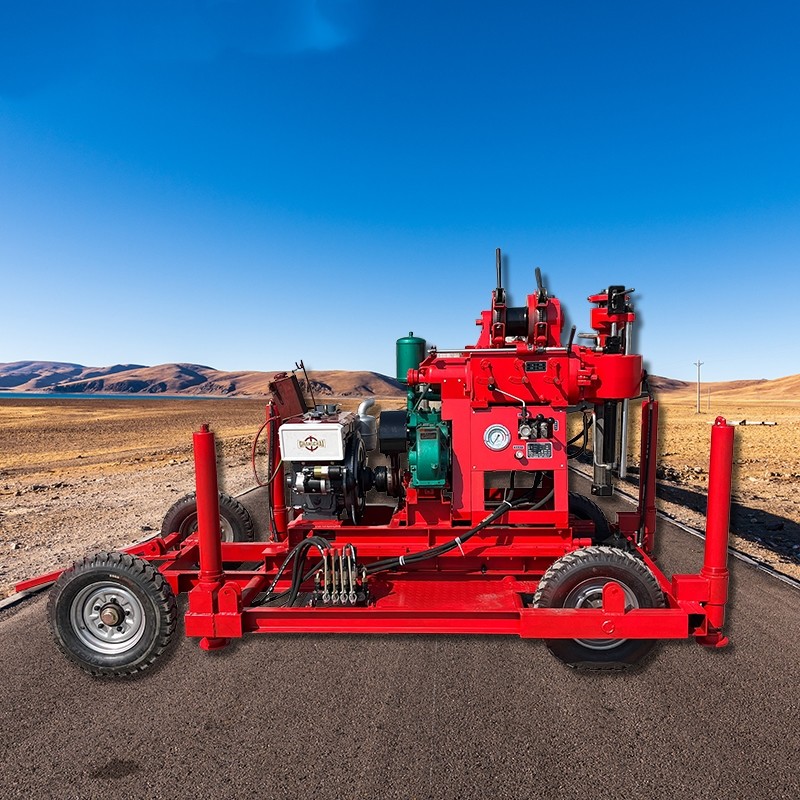

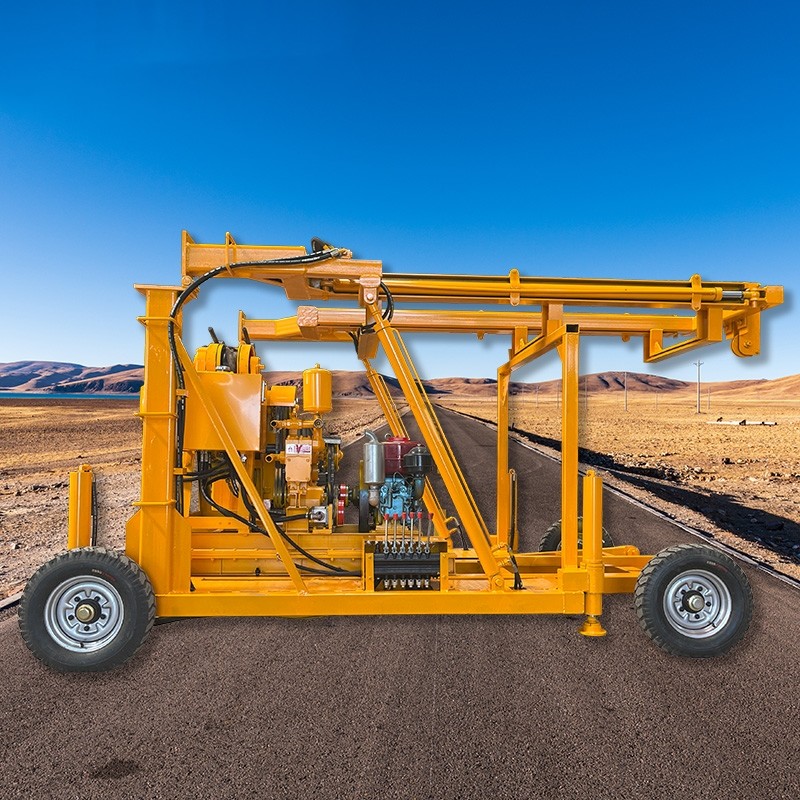

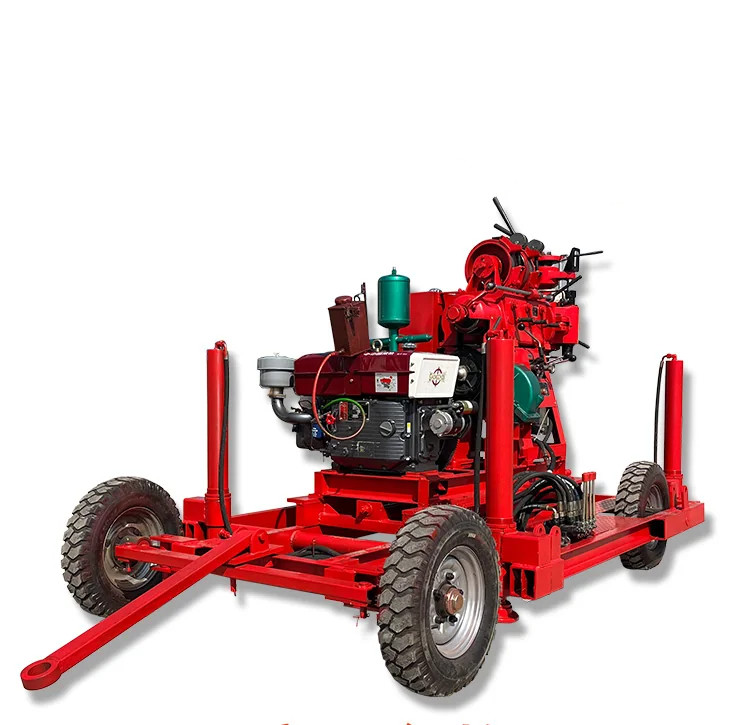

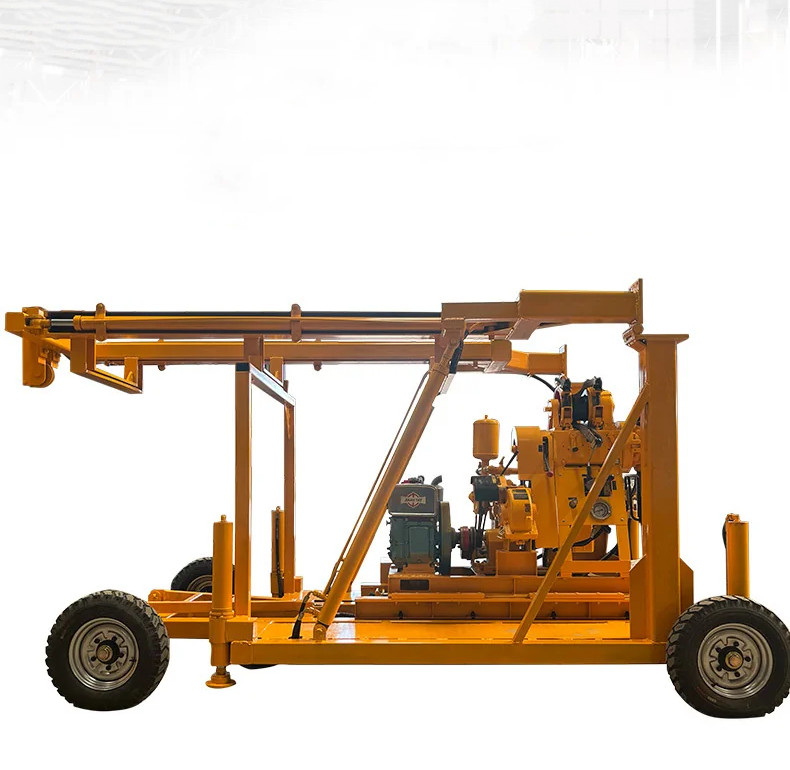

150 Meter Soil Investigation Core Drilling Rig
1. Applications of XY-150 hydraulic core drilling rig
XY-150 core drilling rig is XY-1A core drilling rig is mainly used for geological survey exploration, geophysical exploration, foundation investigation of roads and high-rise buildings, water wells, blast holes and other drilling projects.
2. Parameters of XY-150 hydraulic core drilling rig
| Model |
XY-150 |
| Drilling depth(m) |
150 |
| Maximum opening diameter(mm) |
219 |
| The final hole diameter(mm) |
73 |
| Rod diameter(mm) |
42/50 |
| Spindle speed (r/min) |
140/295/470/790/1010 |
| Spindle stroke(mm) |
450 |
| Hoisting capacity (kn) |
14 |
| Steel wire diameter(mm) |
9.3 |
| Maximum pressure (mpa) |
1.2 |
| Working pressure (mpa) |
0.7 |
| displacement(l/min) |
150 |
| Hydraulic pump pressure (mpa) |
1.2 |
| Hydraulic pump rotation speed (r/min) |
1800 |
| Matched driving power (diesel engine and motor) |
S1105 diesel engine and 11kw motor |
Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
Hengshui Aoxing Geological Equipment Co., Ltd has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials in the fields of water conservancy, geology, mining, tunnels, subways, construction, geological exploration, mining exploration, geotechnical engineering, soil investigation, etc.
The main products include: inflatable or water filled packers, manual packers, high-pressure grouting pipes, pneumatic hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, screw grouting pumps, cement mixers, high-speed grouting machines, mud stations, sprayers, Lurong test packers and Lurong test equipment, diamond drill bits, hole extenders, geological drill rods and casings, exploration drilling rigs, water well drilling rigs, engineering drilling rigs, hydraulic drilling rigs, air compressors, core barrels, salvage barrels, SPT tools, soil sampling tools, drilling tools and accessories, grouting pump accessories and drilling rig accessories, etc.
Our team is dedicated to dam curtain consolidation grouting, foundation engineering grouting, mineral exploration, soil investigation, and geological engineering. Provide solutions for engineering drilling.
We can provide accurate, valuable, and targeted solutions and services to our customers based on their specific requirements and needs.
