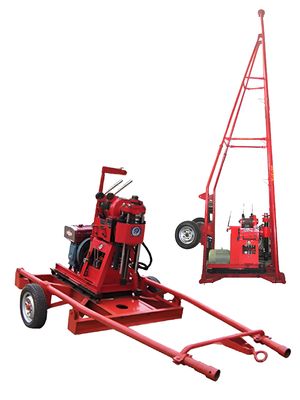

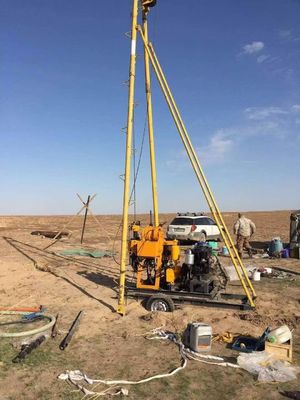

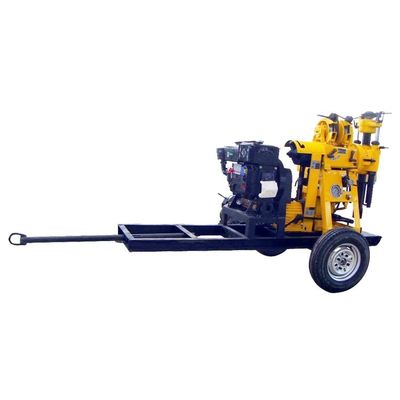

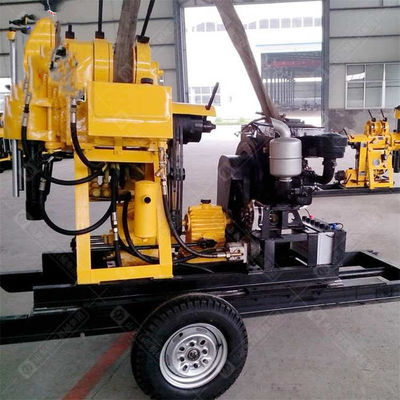

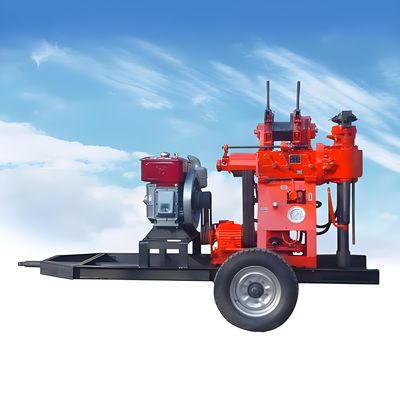

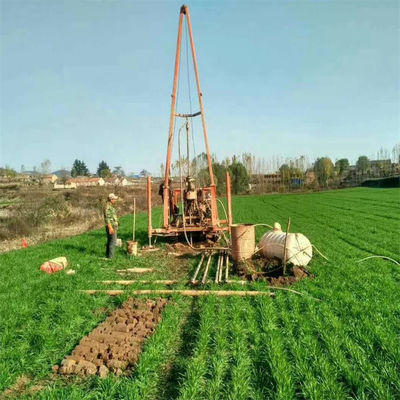

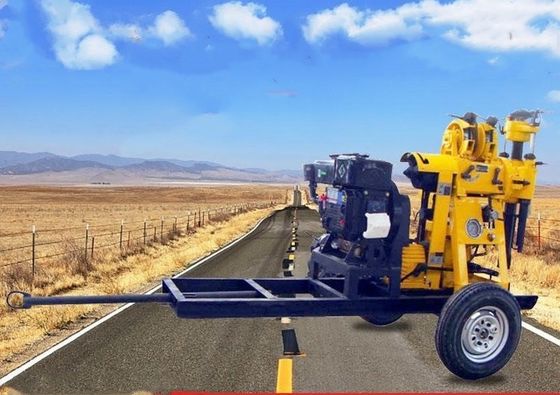

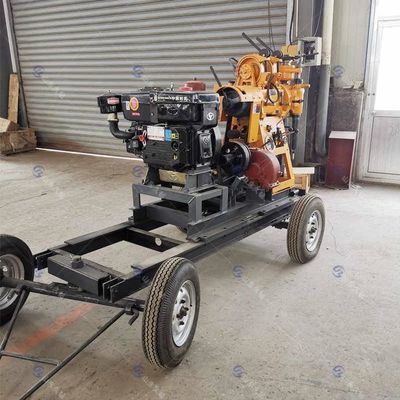

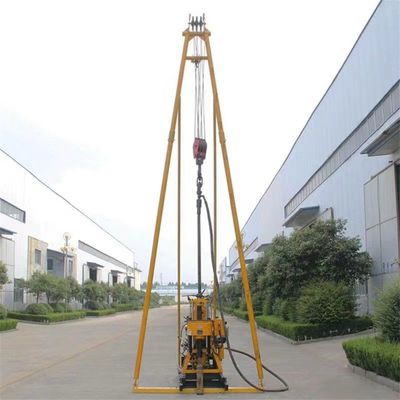

Portable Wheel Mounted Spt Soil Investigation Geotechnical Exploration Core Drilling Rig

1 Set
MOQ
Portable Wheel Mounted Spt Soil Investigation Geotechnical Exploration Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Ore, Water Well, Soil Testing, Coal
Drill Hole Depth: 110m
Drill Hole Diameter: 76-220mm
Bit Type: Diamond Bit
Drilling Way: Rotary
Type: Core Drilling Rig
Power Type: Diesel
Application: Borehole/Spt/Core Drilling/Auger Drilling
Drilling Rig Base: Sliding Skid Base/Crawler Chassis/Wheels
Origin: China
After-Sales Service Provided: Video Technical Support
Highlight:

rotary core drilling rig

,

rotary hydraulic drilling rig

,

water well core drilling rig
Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: XY-100 type
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 30 Sets/Month
Product Description

1. Applications of XY-100 hydraulic core drilling rig

XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.

2. Specifications of XY-100 hydralic core drilling rig

Model XY-100
Drilling depth 110
Maximum open hole caliber 220mm
End hole caliber 75mm
Drill rod caliber 50mm /42mm
Drilling angle 90
Drilling rig weight (exclude diesel engine) 610kg
Unity machine dimensions 2.1*0.9*1.3m
Spindle
Spindle speed 130/300/480/730/830/1045 r/min
Spindle stroke 450mm
Hoist
Max. lifting capacity with single rope 1600kg
Lifting speed with single rope 1.06/0.67/0.32 m/s
Wire rope caliber 13mm
Wire rope cubic measure 35mm
Hug floodgate caliber 254mm
Hug floodgate belt width 50mm
Distance between drill and hole 230mm
Mud pump
Type Horizontal single-urn twin-action
Displacement (with diesel engine/electric motor) 170l/min
Max. pressure 1.5mpa
Work pressure 0.7mpa
Power
Diesel engine S1100
Electric motor Y160M-4 / 10KW

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.
