XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig

1 Set
MOQ
XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig
Features Gallery Product Description Request A Quote
Features
Specifications
Usage: Ore, Water Well, Soil Testing, Coal
Drill Hole Depth: 110m
Drill Hole Diameter: 76-220mm
Bit Type: Diamond Bit
Drilling Way: Rotary
Type: Core Drilling Rig
Power Type: Diesel
Application: Borehole/Spt/Core Drilling/Auger Drilling
Drilling Rig Base: Sliding Skid Base/Crawler Chassis/Wheels
Origin: China
Highlight:

rotary hydraulic drilling rig

,

rotary hydraulic core drilling rig

,

water well hydraulic drilling rig

Basic Infomation
Place of Origin: Hebei,China
Brand Name: Aoxing
Certification: ISO9001
Model Number: XY-100 type
Payment & Shipping Terms
Packaging Details: in Plywood Case
Supply Ability: 30 Sets/Month
Product Description

1. Applications of XY-100 hydraulic core drilling rig

XY-100 hydraulic core drilling rig is widely used for core drilling rig, geological exploration and prospecting, geothermal wells, blast-hole, irrigation projects, etc.

2. Specifications of XY-100 hydralic core drilling rig

Model XY-100
Drilling depth 110
Maximum open hole caliber 220mm
End hole caliber 75mm
Drill rod caliber 50mm /42mm
Drilling angle 90
Drilling rig weight (exclude diesel engine) 610kg
Unity machine dimensions 2.1*0.9*1.3m
Spindle
Spindle speed 130/300/480/730/830/1045 r/min
Spindle stroke 450mm
Hoist
Max. lifting capacity with single rope 1600kg
Lifting speed with single rope 1.06/0.67/0.32 m/s
Wire rope caliber 13mm
Wire rope cubic measure 35mm
Hug floodgate caliber 254mm
Hug floodgate belt width 50mm
Distance between drill and hole 230mm
Mud pump
Type Horizontal single-urn twin-action
Displacement (with diesel engine/electric motor) 170l/min
Max. pressure 1.5mpa
Work pressure 0.7mpa
Power
Diesel engine S1100
Electric motor Y160M-4 / 10KW

Note: The product is continuously improved, and subject to change without notice, please refer to the actual product.

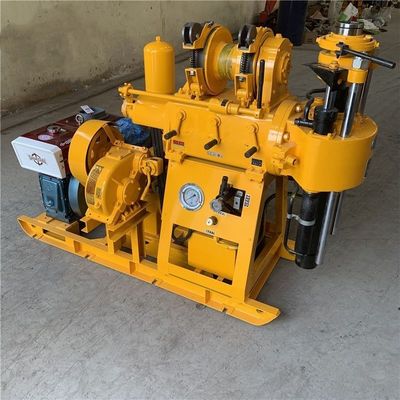

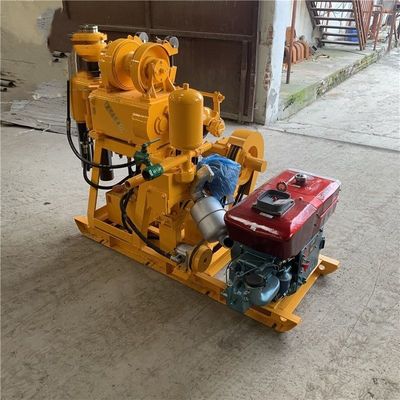

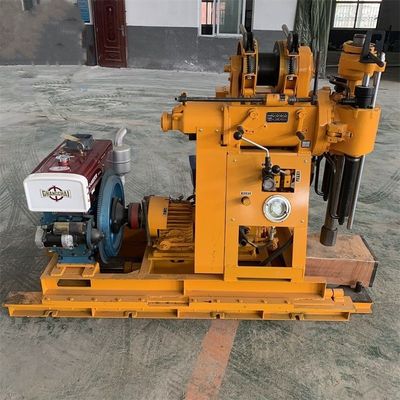

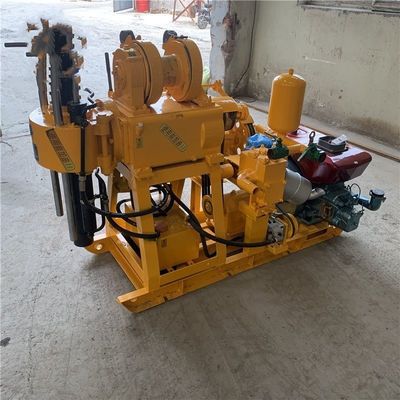

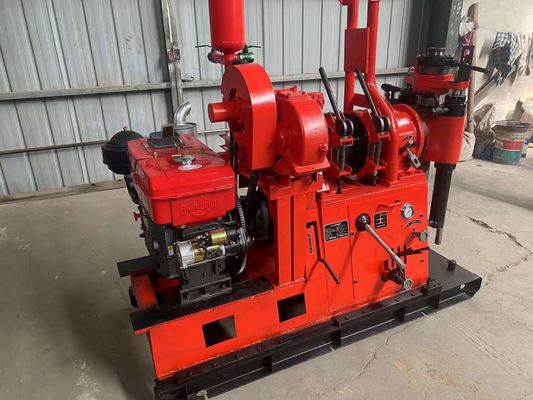

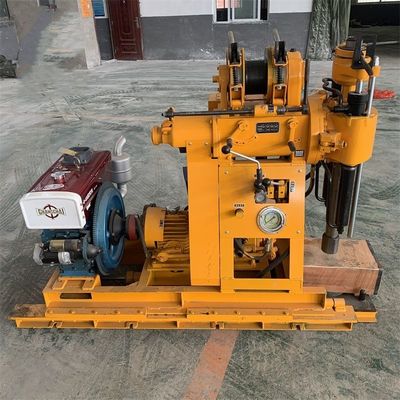

XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig 0XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig 1XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig 2XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig 3XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig 4XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig 5XY-100 Small Soil Testing/Geotechnical Survey Hydraulic Core Drilling Rig 6



Common Problem:

  1. ,1. What are our payment methods?

100% prepayment for small sample orders., Prepay 30% deposit for bulk products and pay the remaining 70% before shipment.

2. How to transport products?

Express delivery, air freight, sea freight, train, etc.

3. How to place an order?

Please provide us with the required specifications, models, and quantities, and we will create a PI to confirm the order details. Once we have confirmed everything, we can arrange for payment and finally ship within the time frame we have specified.

4. How to inspect the goods?

Support customers to come to the factory for on-site inspection, support customers to designate third-party companies for inspection, and support video inspection.

5. Can you provide us with the necessary documents for customs clearance?

Yes, of course. We will send you commercial invoices, sales contracts, packing lists, and bills of lading (FOB or CFR, CIF terms).

6. After sales service

The product comes with an English manual and spare parts. We provide 24-hour service through online chat and phone, lifetime free technical support, and overseas service: if you need it, we can dispatch engineers to provide on-site service.
