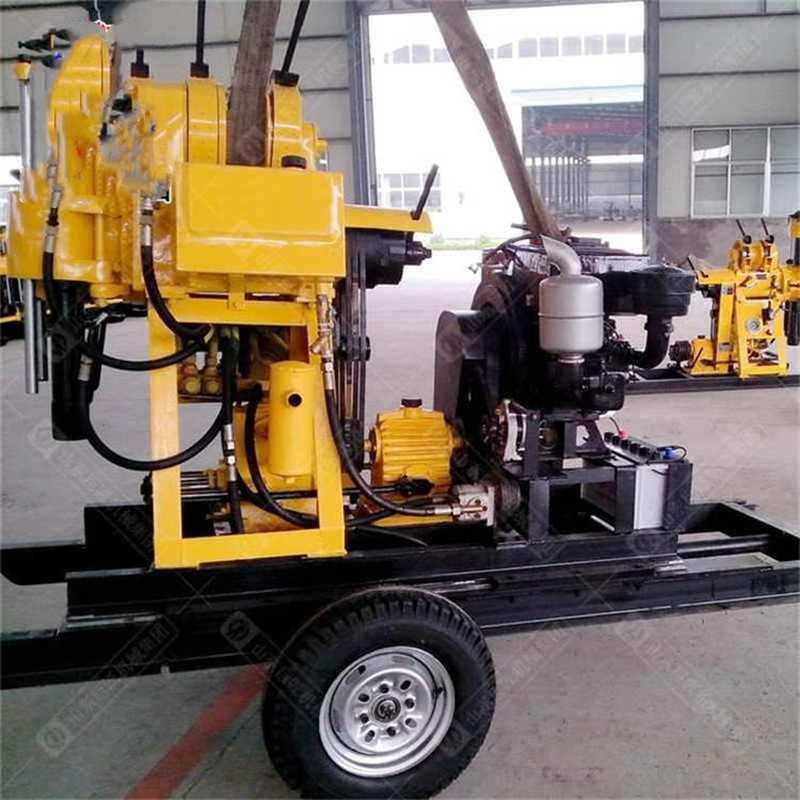

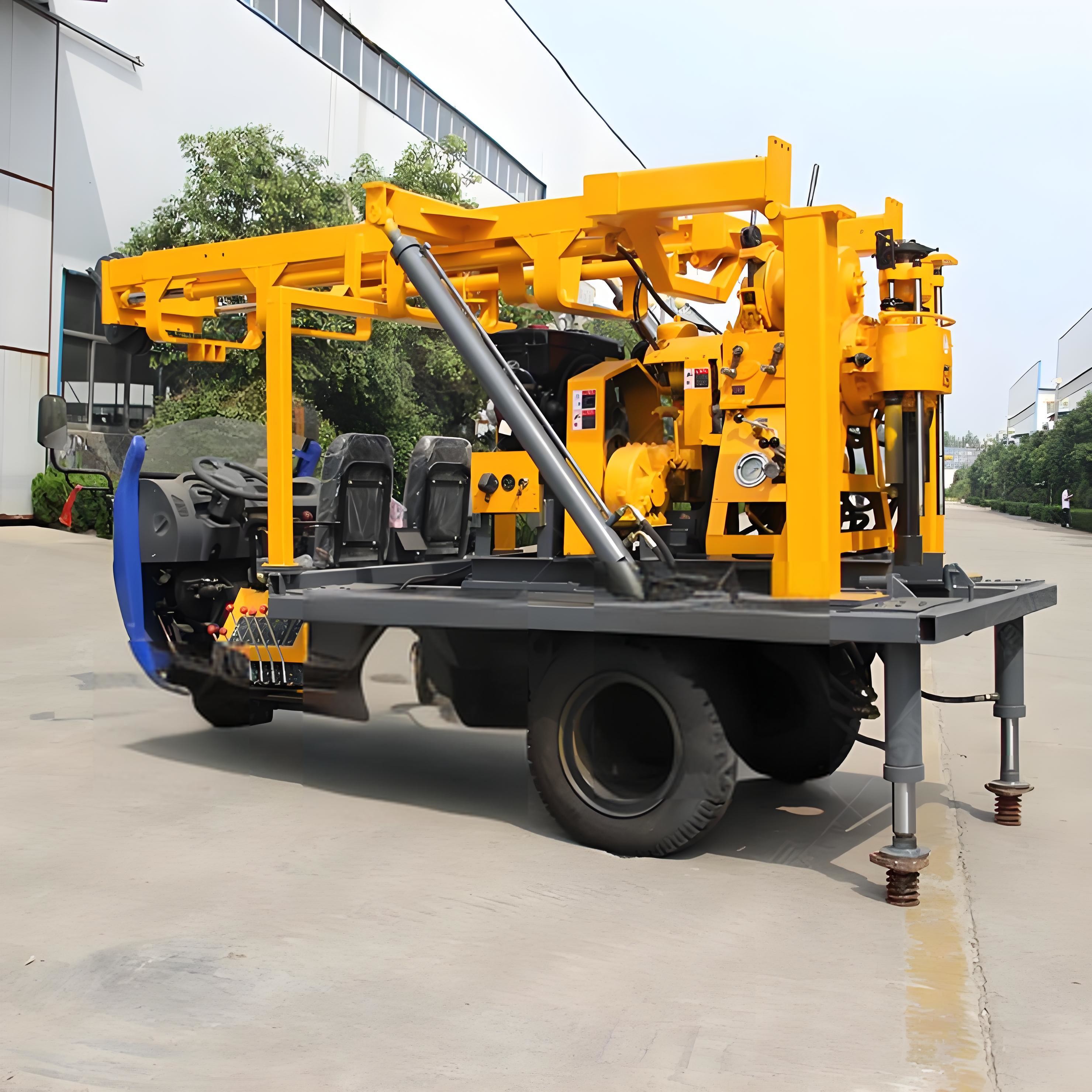

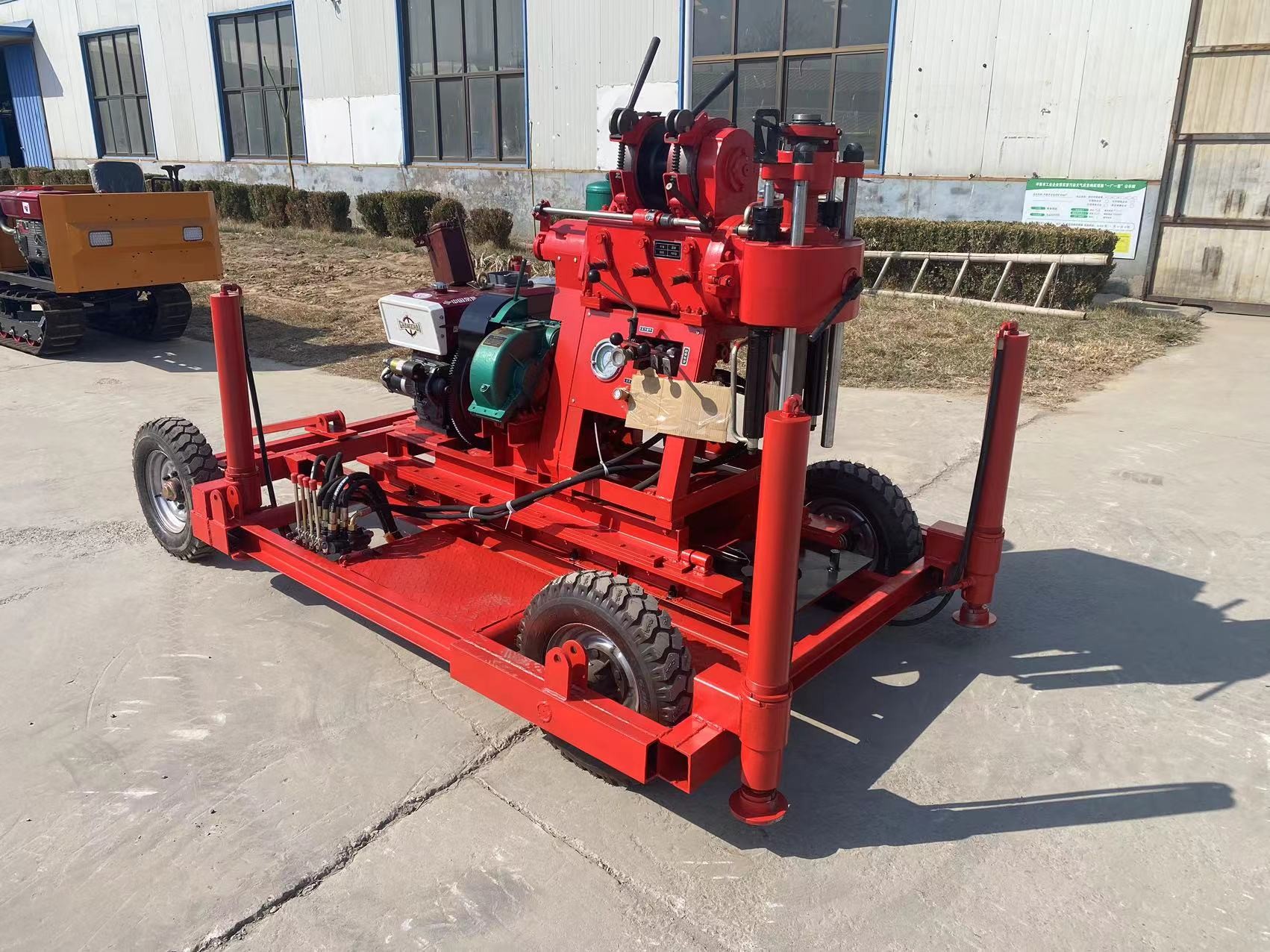

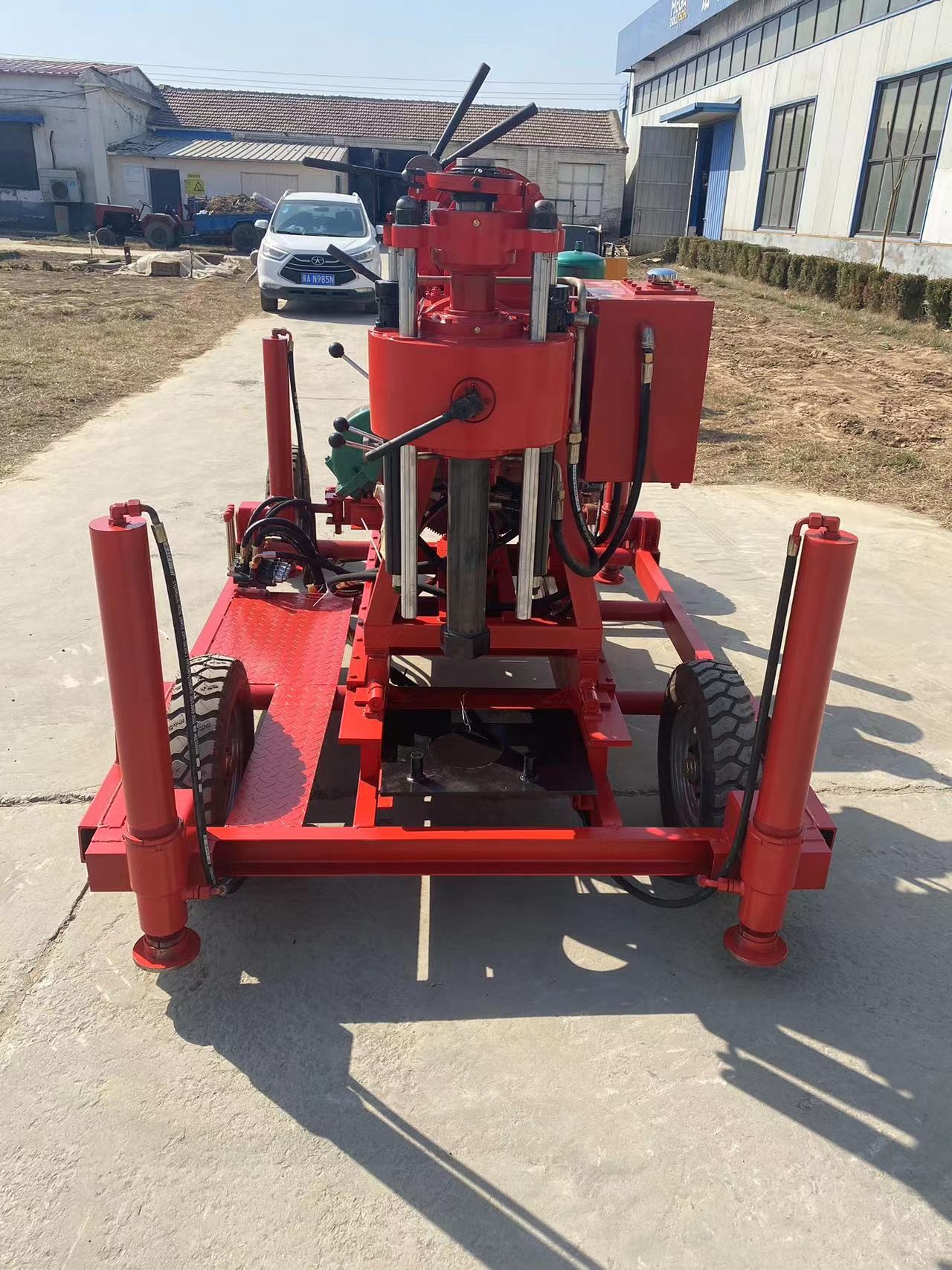

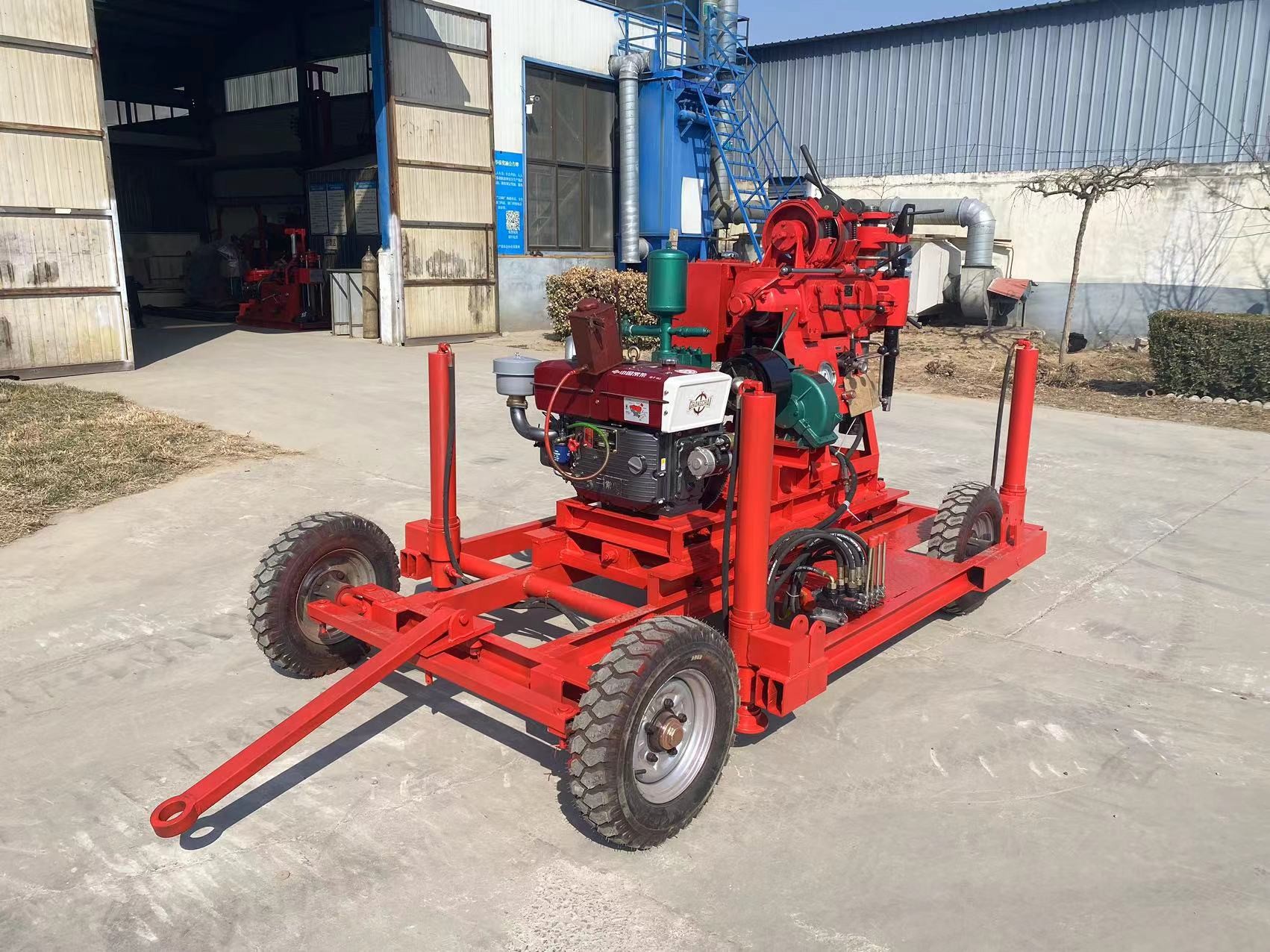

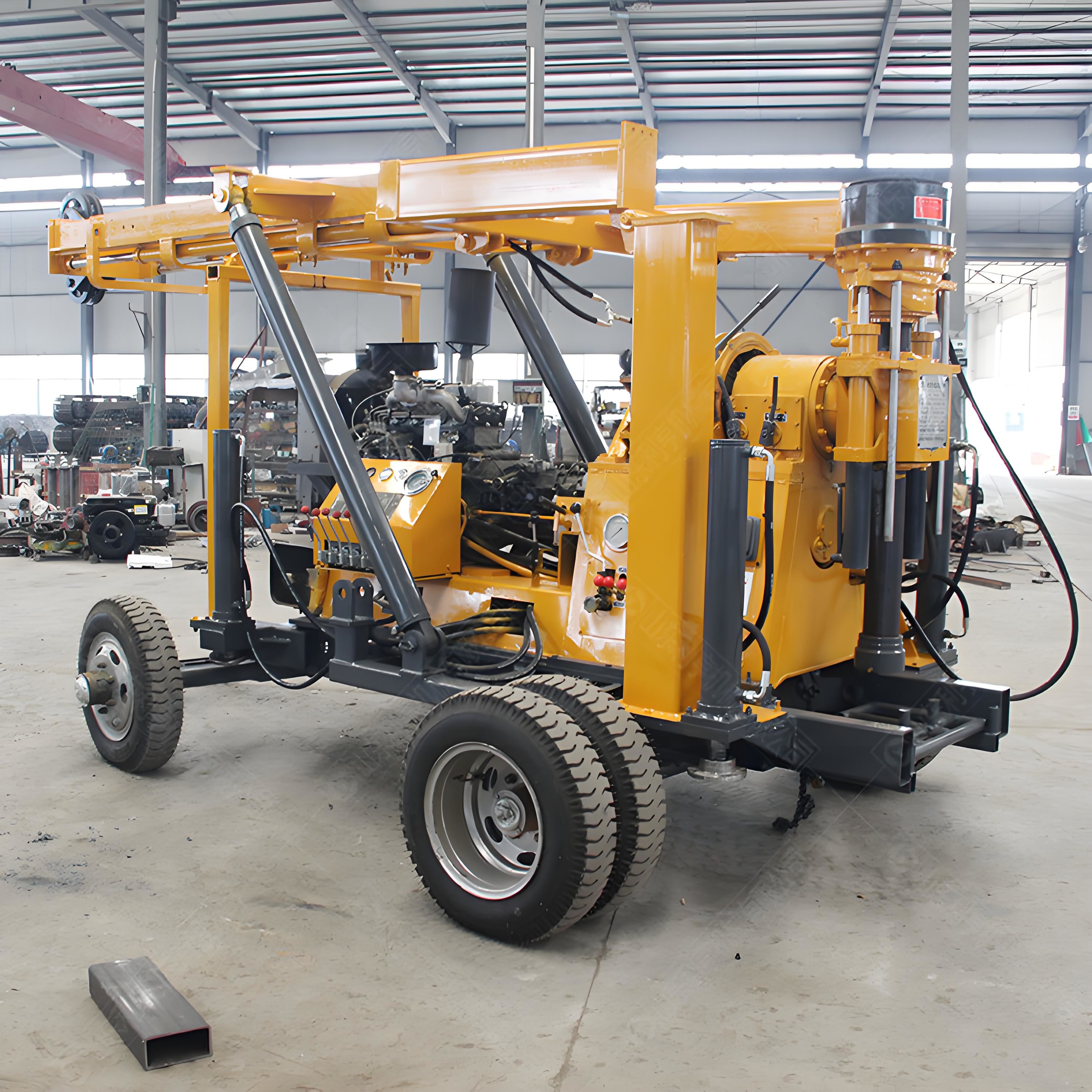

Wheels Trailer Soil Sampling Geological Exploration Drilling Rig For Geophysical Prospecting
Product Descriptions:
Simple tower bottom + with tire walking platform + hydraulic lifting tower, with BW160 mud pump, with electric motor + electric frequency.
And 1105 diesel engine optional can choose.
With hydraulic automatic feeding device, elevated drilling efficiency.
-
The holding mechanism with upper spherical jaws is used as a substitute for chuck. The rod can be replaced without shutdown.
-
Centralized handles, easy operation, safe and reliable.
-
The drilling machine, pump, and diesel engine are installed on a common base frame in order to have a compact structure and occupy a small field area.
-
Lightweight, high detachability, easy transportation, and suitable for operations in plains or mountain areas.
| 1.Drilling capacity |
| Drilling depth |
100, 180 m |
| initial hole dia.max. |
150 mm |
| Final hole dia. |
75, 46 mm |
| Rod dia. |
42 mm |
| Drilling angle range |
90-75° |
| Overall dimensions(L*W*H) XY-1A-4 |
1700X780*1274 mm |
| Weight(exclude power unit) XY-1A-4 |
620 Kg |
| Stroke XY-1A(YJ) |
350mm |
| 2.Swivel head |
| Spindle speed |
1010,790,470,295,140 r/min |
| Spindle stroke |
450 mm |
| Spindle speed as lifting up no load max |
3 m/s |
| Spindle speed as lowering down no load max |
4 m/s |
| Feeding pressure max. |
23 KN |
| Lifting capacity(single line)max |
11 KN |
| 3.Hoist |
| Lifting capacity(single line)max |
15 KN |
| Drum speed |
121, 76, 36 r.min |
| Drum circumferetial velocity(two layers) |
1.465, 0.733, 0.331 m/s |
| Drum dia |
140 mm |
| Cable dia |
9.3 mm |
| Spool capacity |
35 m |
| Brake dia |
252 mm |
| Brake band broad |
50 mm |
| 4.Water pump |
| Model |
Horizontal reciprocating single-acting piston pump |
| Displacement max. |
95L/min |
| Working pressure max. |
1.2 Mpa |
| Continuous working pressure |
0.7 Mpa |
| Suction pipe dia. |
32mm |
| Discharge pipe dia. |
25mm |
| 5.Oil pump |
| Model |
YBC-12/125 |
| Working pressure |
12.5 MPa |
| Volume of flow |
8 ml/r |
| Speed |
800-2500 r/min |
| 6.Power unit |
| Diesel engine |
S1105 13.2KW |
| Rated speed |
2200 r/min |
| Electric motor Power |
Y160M-4 11 KW |
| Rated Speed |
1460 r/min |
